 7. Addition of 3D Coordinate

 After I conducted analysis of Air-to-Air missile series, I should add longer range missiles for my analysis which requires coordinate of surface of the earth. Conventional coordinate of the Missile-SIM is basically two dimension with 2DOF limited due to the CFD resource.

 DOF is not expanded which requires several additional coefficient and inertia values. Effect of Coriolis is considered and it could give more precise trajectory simulation for the Missile-SIM.

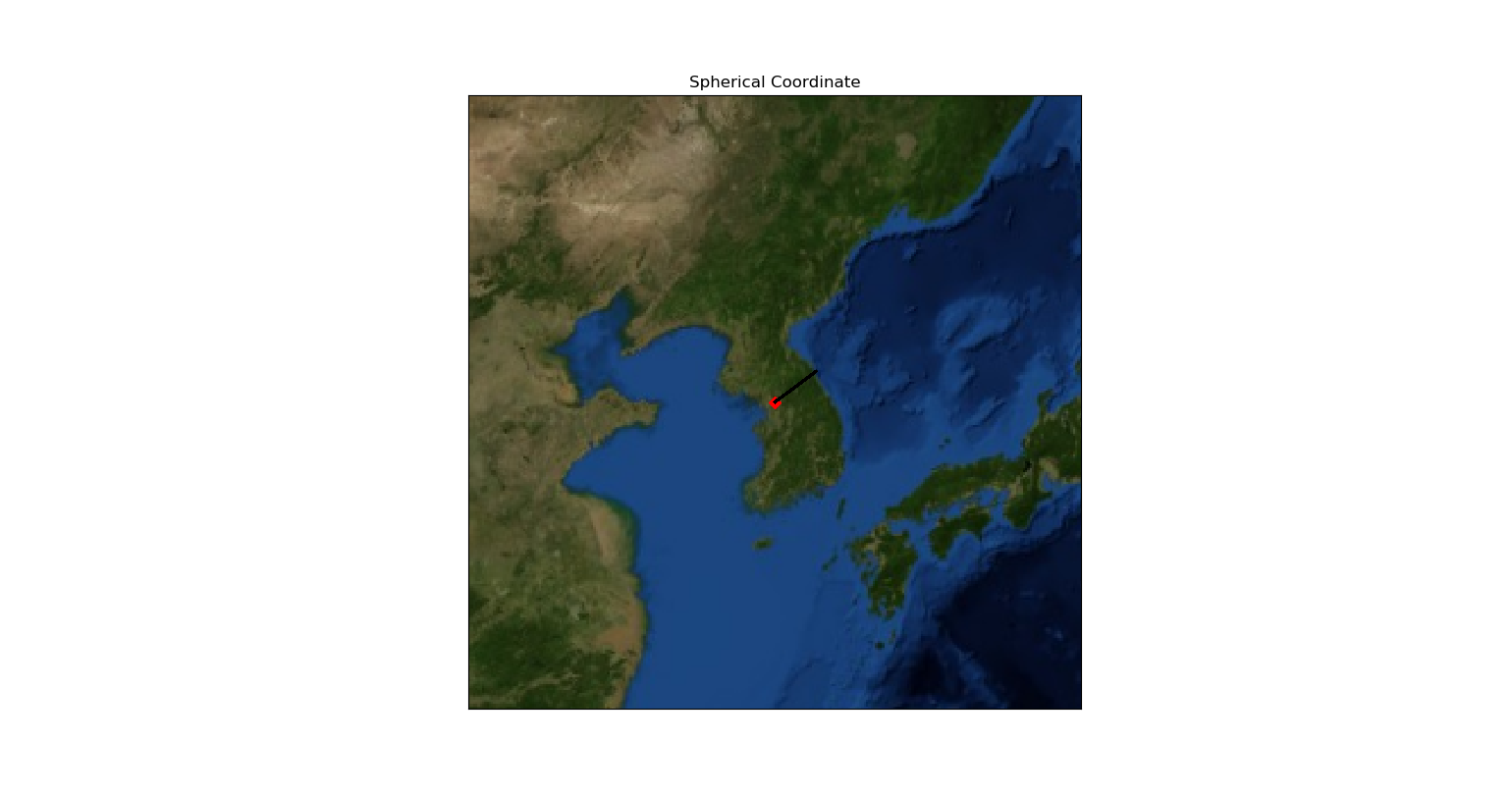

 Below is sample result using generic Meteor type missile. (shoot the missile 60deg from North)

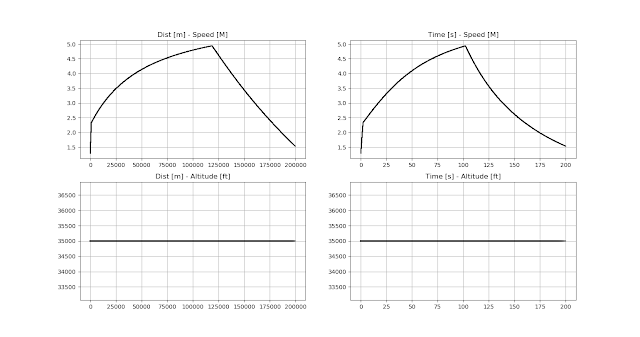

 Resulted range is about 200 km from Seoul.
