 4. Demo-Case Result

8) Performance Chart

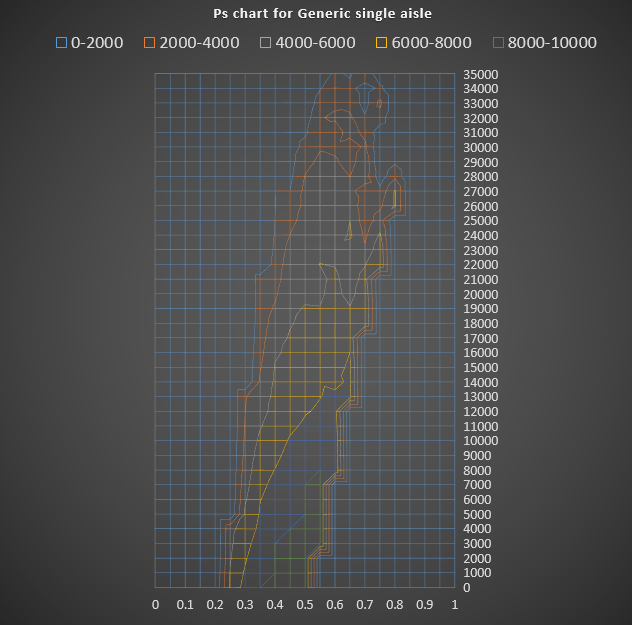

Ps, Fuel Flow, Specific Range (V/FF = m/s / kg/s = m/kg), Turn rate is described for the generic airliner DB. Due to the low resolution of sim, graph is very rough, but functioning of the program is checked.

9) Stability Chart

State Space maxtrix A, B and its eigen value is calculated by the SIM. Below shows test result for A matrix for longitudinal and lateral direction. Based on matrix value, exact controller design should be done in MATLAB or similar framework.
